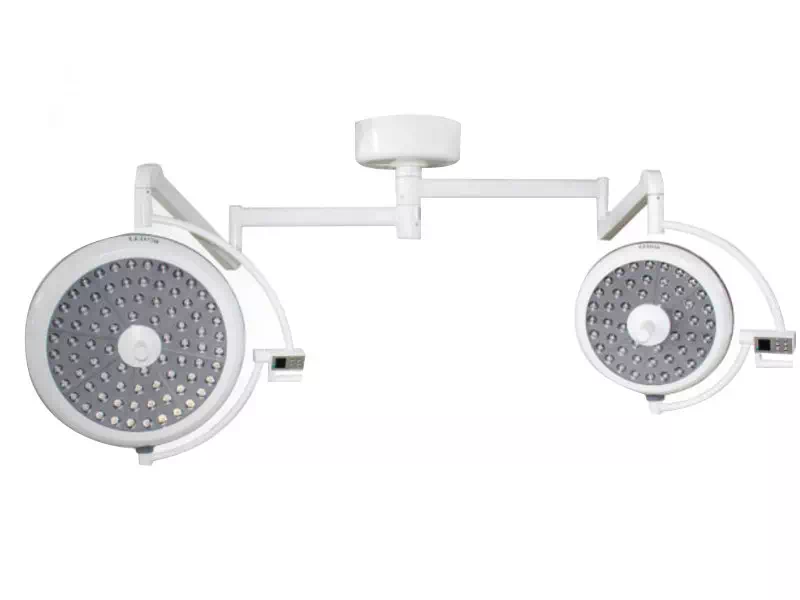

LED700/500 Surgical Shadowless Lamp Product Introduction
1. Ultra long service life:
Adopting a new type of LED cold light source, the lifespan can reach over 60000 hours without the need to replace the light bulb. Compared to traditional halogen lamps, it can also meet the requirements of energy conservation and environmental protection.
2. Perfect cold light effect:
Using a new type of LED cold light source, there is no ultraviolet or infrared radiation in the spectrum, neither heat nor radiation. The temperature rise of the doctor's head and wound area is ≤ 1 ℃, with almost no temperature rise.
3. Ideal exterior design that meets purification requirements:
The fully enclosed streamlined circular lamp head design conforms to the principles of aerodynamics, completely eliminating dead corners in purifying air and meeting the high standard laminar flow requirements of modern operating rooms, which is conducive to the sterile requirements of the operating room. The lampshade shell is made of aluminum alloy material, which has excellent heat dissipation; The surgical shadowless lamp holder includes a disinfection handle and a handrail for the lamp holder. Medical staff can move the surgical lamp holder from any angle to adjust its positioning, fully considering the flexibility of medical staff operation.
4. Humanized interface design:
The lighting brightness can be changed according to the hospital's requirements for different surgical lighting. Optional new LED touch LCD control panel can be equipped to achieve lighting switch and adjustment of illumination, color temperature, and brightness mode.
5. Super strong deep lighting and perfect shadowless effect:
The overall design of the LED lamp head concentrates the light beam into a high brightness uniform beam, ensuring a soft and uniform deep focusing effect, and meeting the high brightness and depth lighting requirements of surgery.
6. Color temperature adjustable function:
The color temperature of the LK/LED-700/500 surgical shadowless lamp can be adjusted in six levels from 3000K to 6700K, making diagnosis more accurate and avoiding eye fatigue for medical staff due to long-term work.
7. Good suspension system:
A lightweight and high-quality balance arm suspension system, with six sets of universal joint linkage, the surgical shadowless lamp head can rotate 360 º for unlimited positions, the disinfection handle and 360 º fence handrail are designed in all directions to meet the needs of various heights, angles, and positions during surgery, with convenient movement and accurate positioning.
8. A finely structured focusing system:
Equipped with manual focusing technology, the operation is simple and lightweight, overcoming the technical difficulties in focusing LED surgical shadowless lamps and achieving stepless focusing function; Detachable handle, capable of high-temperature sterilization treatment (≤ 134 ℃).
9. Bright and uniform lighting:
The light beam emitted by the LED light source is focused and converged through a specially designed high-performance lens in the surgical area to meet the lighting requirements for surgery; The maximum illumination level can reach 160.000LUX. The brightness of the LED is steplessly controlled through digital means, and the illumination level of each lamp head can be adjusted separately.
10. Extremely low failure rate:
Each LED module contains 6-8 LED beads, and each module has an independent electronic control system. The lamp head has a very low failure rate, and the failure of a single LED will not affect the function of the lamp head.
11. Low heat production:
The greater advantage of LED is that it produces less heat because it emits almost no infrared or ultraviolet radiation.
12. Technical parameters of LED700/500 surgical lamp:
Model LED-700/500
80/48 LED light bulbs
Illumination (Lux) 40000-160000/40000-160000
Color temperature (K) 3000-6700K adjustable/3000-6700K adjustable
Spot diameter (mm) 160-280
Dimming system infinite dimming system
Color rendering index ≥ 96
Lighting depth (mm) ≥ 600
Head temperature rise of the surgeon (℃) ≤ 1
Temperature rise in surgical field area (℃) ≤ 2
Color rendering index (CRI) ≥ 96
Color restoration index ≥ 97
Maximum irradiance ≤ 500 W/m2/≤ 350W/m2
Power supply voltage 220V/50Hz
Minimum/optimal installation height of 2.5 meters/3 meters
Chinese LED-700/500 LED surgical shadowless lamp
Configuration List (Single Unit)
Serial number, accessory name, brand, quantity, unit, remarks
1 set of domestically produced 1700 lamp holders
1 set of domestically produced 2500 lamp holders
3 disinfection handles, 4 domestic standard configurations, and 2 spare parts each
4 LED light groups, German Osram 1 set, 700 lamp holders, with 80 LED beads
5 LED light groups, German Osram 1 set, 500 lamp holders with 48 LED beads
6 domestically produced sets of balance arms
7 rotating arms, 1 set of domestically produced double arms
2 sets of domestically produced 8-switch power supply assemblies
9 fixed bases, 1 set domestically produced
1 set of domestically produced 10 protective covers
11 sets of domestically produced lighting tools
1 set of domestically produced 12 product qualification certificates/warranty cards
13. User Manual: 1 set domestically produced
Article SourceSAKAMITI-https://www.sakamiti.com/2153.html
