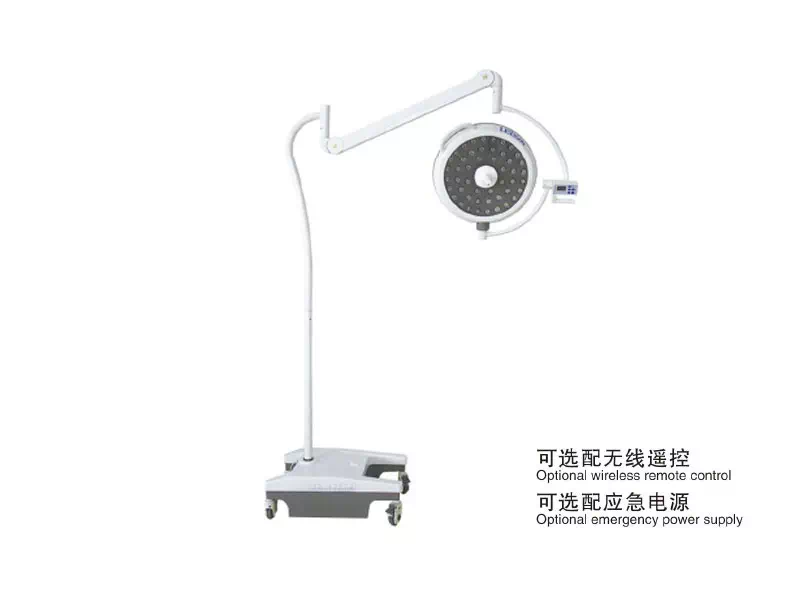

LED500 Mobile Vertical Surgical Lamp

LED500 Mobile Vertical Surgical Lamp

The LED vertical 500 mobile surgical shadowless lamp adopts a new type of LED beads imported from Germany, which can provide high illumination of shadowless spots. The light intensity uniformly transitions from the center point to the edge, realistically reproducing the color of the tissue and clearly presenting the details of the surgical area tissue. The LED vertical 500L mobile surgical shadowless lamp is made of special composite materials and an optical coating process to create a lamp panel cover, making the lighting effect more perfect. The beam is uniform, the light sensation is very soft and comfortable, and it is also easy to clean and disinfect.
The LED vertical 500L surgical shadowless lamp adopts German imported Osram beads, which can provide high illuminance shadowless spots
Chinese LED vertical 500 circular array surgical shadowless lamp is green, environmentally friendly, and has a long service life
1. Ultra long service life
The LED bulbs used in LED shadowless lamps have an average service life of over 20000 hours. Even if used for 10 hours a day, they can be used without any faults for more than 8 years, so there is basically no need to worry about bulb replacement.
2. Green and environmentally friendly
The composition materials of LED bulbs include solid semiconductors, epoxy resin, and a small amount of metal, all of which are non-toxic and pollution-free materials. After their ultra long service life, they can also be recycled. In the current era where environmental protection is increasingly valued, LED shadowless lights will undoubtedly become the new choice of the times.
Maintenance method for LED vertical 500 circular array surgical shadowless lamp
1. Every day, we need to check if there are any problems with the light bulb of the surgical shadowless lamp. We can place a piece of white paper in the working area of the surgical shadowless lamp. If there is an arc-shaped shadow, it indicates that the light bulb is in an abnormal working state and should be replaced.
2. For the handle of the surgical shadowless lamp, we should also remember to check it regularly, and also check if it is flexible. We can use a fire protection method, which is to install it once and listen for two clicks. If there is, it indicates that the installation is not a problem, so there is no problem moving it during use.
3. Also, when cleaning, we should use weak alkaline solvents instead of strong acids and bases, as this can easily affect the surgical shadowless lamp. Also, do not use chlorine containing cleaning solutions (which corrode metals) and alcohol solutions (which corrode plastics and paint) for cleaning, as this will corrode the surgical shadowless lamp.
Technical parameters of LED vertical 500 mobile circular array surgical shadowless lamp
Technical parameters of LED vertical 500 circular array surgical shadowless lamp
Lamp holder diameter (MM) 500
Illuminance (LUX at a distance of 1M) 160000
Color temperature K 4300 ± 500
Spot diameter MM 100-300
Lighting depth MM ≥ 1200
Brightness adjustment 1-100
Color rendering index CRI ≥ 97%
Color restoration index RA ≥ 97%
Head temperature rise of the surgeon ≤ 1 ℃
Temperature rise in the surgical field work area ≤ 2 ℃
Power supply voltage 220V ± 22V 50HZ ± 1HZ
Input power 400VA
The average lifespan of light bulbs is ≥ 60000 hours
Light bulb power 1W/3V
Product Configuration List of LED Vertical 500 Circular Array Surgical Shadowless Lamp
Serial number, accessory name, specification, model, brand, quantity, unit, remarks
1 set of LED 500L lamp holder LED 500L
2 lamp body pillars LED 500L 1 set
3 support bases (with brake casters) LED500L 1 set
4 disinfection handles LED500L, 2 standard, 1 spare part each
5 imported LED light sets, LED500L, German Osram 1 set
6 Balance arms LED 500L 1 set
7 switch power supply assembly LED500L 1 set
8 Product Qualification Certificate LED500L 1 set
9 User Manual LED500L 1 set
