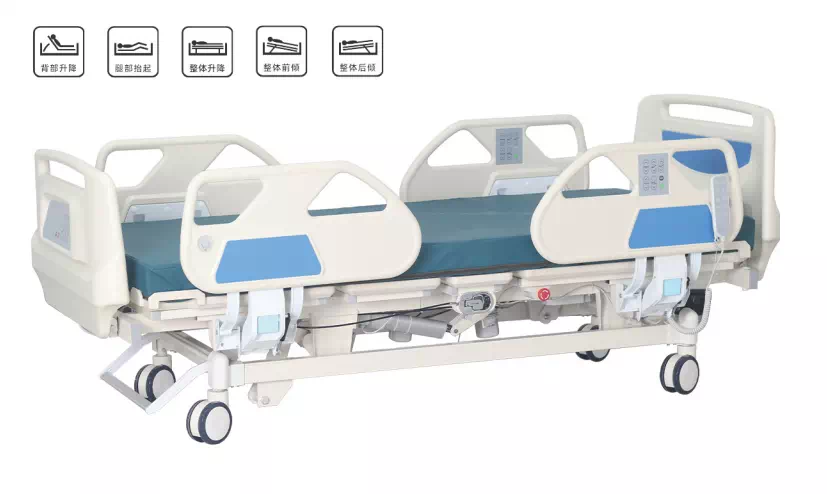

Electric multifunctional weighing hospital bed

Legend of electric multifunctional nursing weighing beds produced in China

Specification of electric multifunctional weighing nursing bed: External dimensions

: L2200 × W1080 × H480/680mm;
Bed panel: L2000 x W900mm
HBHR electric multifunctional weighing hospital bed function:
The whole bed can be weighed, and the error can be controlled within 1-3 ‰; Rising distance ≥ 200mm, backboard adjustment ≥ 65 °, leg adjustment ≥ 35 °, head and foot tilt ≥ 12 °; European style four small guardrails with an up and down flipping structure; Luxury central control casters with a locking, straight-line, and free three-stage central control locking device; Equipped with CPR function; The bed board is formed by integrated stamping, which is beautiful and durable;
Technical parameters of electric multifunctional nursing weighing bed:
Scientific weighing, weighing accuracy of 50-100g, weighing display, no matter the patient is in any position, just touch a button, the built-in weighing system can measure, and the data is accurately displayed on the display.
Bed frame: Made of 60 * 30 * 3.0mm high-quality cold drawn rectangular tube, capable of carrying 240KG.
Bed surface: The bed panel is formed by one-time stamping of high-quality cold-rolled carbon steel plate with a thickness of 0mm. It improves the strength of the bed panel, ensures balanced stress, and has strong pressure resistance. It also has air holes and anti slip function; The welded steel pipe below is reinforced, solid and durable.
After multiple surface treatments, the entire bed is electrostatically sprayed, giving it a more perfect appearance and strong chemical corrosion resistance. The sprayed material is environmentally friendly and non-toxic.
The headboard and tailboard of the bed are made of drug-resistant PE resin material, which is blow molded as a whole. The surface is treated with leather lines, easy to clean, and has an arc-shaped design. There is a patient information card on the tail board of the bed.
The new American style guardrail made of PE material is blow molded as a whole, and each guardrail is equipped with a damper device to control speed and noise. It is sturdy, durable, fast and lightweight, and the guardrail design meets IEC safety requirements, beautiful, generous, and safe.
Both the front and rear guardrails are equipped with angle displays, which can clearly display the lifting angle of the back bed board and the inclination angle of the bed body. A 30 degree mark is set on the guardrail to clarify the angle at which the back is raised by 30 degrees, which can effectively assist in clinical VAP pneumonia.
Original central control brake wheel, with high load-bearing capacity, smooth operation, and no noise. Control function is achieved by controlling the horizontal bar to press and lift. It is equipped with fully enclosed self-lubricating bearings, which do not require oil care and prevent foreign objects from getting entangled; The wheel surface is made of TPR polymer wear-resistant material, which is wear-resistant and noise free.
There are five anti slip devices on both sides of the backboard and at the foot of the bed to prevent the mattress from slipping and improve safety.
The manual CPR operation wrench on the left side of the bed can achieve rapid treatment and reduce medical accidents in emergency situations. One drainage hook on each side.
The motor adopts the original medical motor for export, with stable speed control and low noise. With EN60601/UV medical certification certificate, it is silent, has a long lifespan, and is safe and reliable. The guide rod system adopts a combination of high carbon steel and high-strength aluminum platform, with bidirectional pole overload protection screw.Article SourceSAKAMITI-https://www.sakamiti.com/2177.html Article SourceSAKAMITI-https://www.sakamiti.com/2177.html
