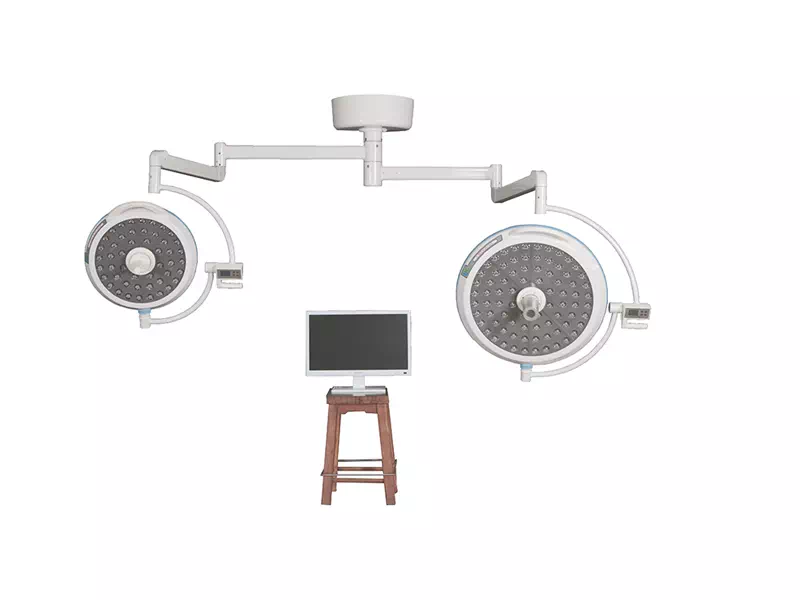

Led700/500 built-in camera surgical light

Led700/500 built-in camera surgical shadowless lamp

Main technical parameters of LED series shadowless lamps

Specification and model LED700 LED500

Illumination (adjustable) Lux 60000-180000 (adjustable) 40000-160000 (adjustable)

Number of light bulbs: 80, 48

Bulb type LED

Average lifespan of light bulbs ≥ 80000h ≥ 80000h

Color temperature (adjustable) 3700K~5000K 3700K~5000K

Display index (adjustable) 85-98 85-98

Color rendering index ≥ 97% ≥ 97%

Color restoration index Ra ≥ 97% ≥ 97%

Focusing depth ≥ 1200mm ≥ 1200mm

Working radius (mm) 600-1800 600-1800

Spot diameter 160-280mm (adjustable) 160-280mm (adjustable)

Brightness adjustment 1% -100% 1% -100%

Head temperature rise of the surgeon ＜ 1 ℃ ＜ 1 ℃

Temperature rise in the surgical field area ＜ 2 ℃ ＜ 2 ℃

Power supply voltage AC100-240V 50/60HZ AC100-240V 50/60HZ

Optimal installation height (mm) 2600-3000 2600-3000

Product features:

1. A true cold light source

★ Adopting a new type of LED cold light source, it is energy-saving, environmentally friendly, and has a super long service life of over 80000 hours. 40 times longer lifespan than halogen lamps. At the same brightness, LED energy consumption is only 1/10 of that of ordinary incandescent lamps and 1/2 of that of halogen lamps.

LED does not produce infrared and ultraviolet radiation, halogen-free shadowless lamps cause temperature rise and tissue damage to wounds, and there is no radiation pollution.

★ LED color temperature is constant, color temperature and color do not decay, soft and not dazzling, very close to natural sunlight, without ultraviolet radiation and flicker.

2. Excellent shadowless effect

★ The lamp head adopts the most scientific curvature, with built-in eight zones, molded, and multi-point light source design. The light spot adjustment is flexible, making the illumination more uniform. When the surgical lamp is partially blocked, it can also achieve a perfect shadowless effect.

★ Use two types of light beads with similar color temperatures to avoid dizziness for the surgeon.

3. Excellent depth lighting

★ Adopting computer-aided modular design, multiple LED light columns are focused for illumination, producing a depth illumination of over 1200 millimeters of light columns, with a maximum central illumination of over 180000 lux, and providing adjustable color temperatures of 3700K-5000K that are close to natural sunlight, truly reflecting the color of human tissues, fully meeting the needs of various surgical lighting.

★ Equipped with endoscopic surgery mode and soft ambient lighting; Press the ambient lighting button, indicating that only the cavity mirror ambient lighting is needed, leaving only one of the 8 LEDs for illumination, and turning off the remaining LED string; Press this button again to return to the original illumination display state. It has played a good auxiliary role in local depth lighting.

4. Advanced control system

★ Adopting LCD display button type control, it can adjust power switch, illumination, color temperature, etc. to meet the requirements of medical staff for different surgical brightness of patients.

★ Digital memory function, automatically remembers the appropriate lighting level, and does not require debugging when turned on again.

★ Multiple centralized control methods with the same power and multiple groups, ensuring that single LED damage does not affect surgical lighting requirements.

5. Universal suspension system

★ Rotating arm, using a 50 * 70 standard rectangular tube for a safer and more aesthetically pleasing appearance; The maintenance port for the rotating arm carbon brush adopts ABS mold for one-time molding, with no external screw fixation, which is more coordinated and beautiful.

The balance system adopts high-quality spring arm components, which are lightweight, easy to operate, precise in positioning, and can provide the maximum adjustment range.

6. Modern laminar flow lamp head

★ Circular ultra-thin design, with the thickest part not exceeding 10CM, can achieve excellent laminar flow effect.

The lampshade shell is made of aluminum material, and the central handle of the lamp head is detachable, making it easy to adjust and flexibly position.

Technical parameter description of camera system

Function: Switching frame accumulation day and night

Anti flicker white balance

Wide dynamic backlight compensation

Strong light suppression 3DNR

Privacy Masking Mirror Function

Dynamic detection of frozen images

Advanced features:

Electronic anti shake and anti fog function

Product features:

1. High quality 1080P (1920 * 1080) high-definition image quality

2. 1/3 "CMOS Sensor, progressive scanning, effective pixels of approximately 2.3 million

3. High sensitivity mode -0.2lux

4. Powerful zoom function: 10x optical zoom, 12x digital zoom, up to 120x zoom

5. Image output signal: LVDS, (optional SDI or AHD)

6. Main chip temperature display, ID display, and zoom display

7. Communication protocol supporting remote control: SONY-VISCA PELCO-D
