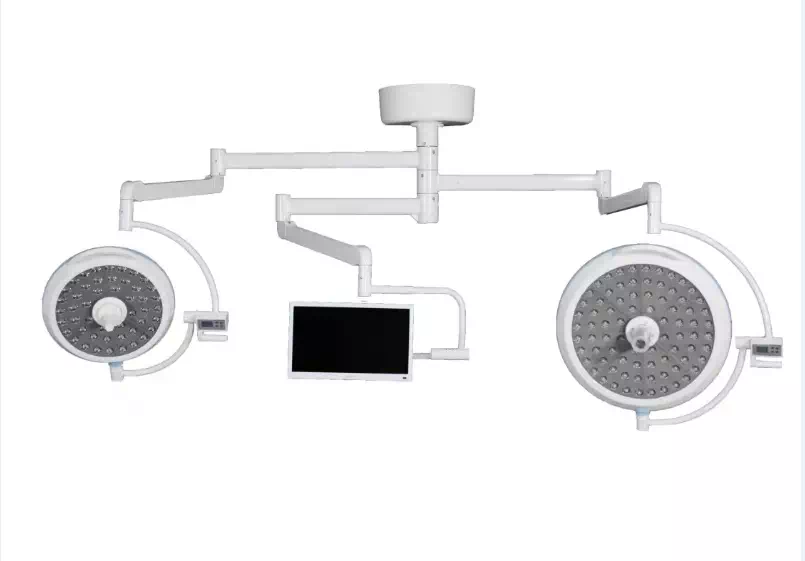

Main technical parameters of LED series shadowless lamps | ||
Specification and model | LED700 | LED500 |
Illumination (adjustable) Lux | 60000-180000 (adjustable) | 40000-160000 (adjustable) |
Number of light bulbs | 80 pieces | 48 pieces |
Bulb type | LED | LED |
Average lifespan of light bulbs | ≥ 80000h | ≥ 80000h |
Color temperature (adjustable) | 3700K~5000K | 3700K~5000K |
Display index (adjustable) | 85~98 | 85~98 |
Color rendering index | ≥ 97% | ≥ 97% |
Color restoration index Ra | ≥ 97% | ≥ 97% |
Focus depth | ≥ 1200mm | ≥ 1200mm |
Working radius (mm) | 600-1800 | 600-1800 |
Spot diameter | 160-280mm (adjustable) | 160-280mm (adjustable) |
Brightness adjustment | 1% -100% | 1% -100% |
Warming of the surgeon's head | <1 ℃ | <1 ℃ |
Temperature rise in the surgical field area | <2 ℃ | <2 ℃ |
supply voltage | AC100-240V 50/60HZ | AC100-240V 50/60HZ |
Optimal installation height (mm) | 2600-3000 | 2600-3000 |
Product features: Article SourceSAKAMITI-https://www.sakamiti.com/2183.html
- A true cold light source
★ Adopting a new type of LED cold light source, it is energy-saving, environmentally friendly, and has a super long service life of over 80000 hours. 40 times longer lifespan than halogen lamps. At the same brightness, LED energy consumption is only 1/10 of that of ordinary incandescent lamps and 1/2 of that of halogen lamps.Article SourceSAKAMITI-https://www.sakamiti.com/2183.html
LED does not produce infrared and ultraviolet radiation, halogen-free shadowless lamps cause temperature rise and tissue damage to wounds, and there is no radiation pollution.Article SourceSAKAMITI-https://www.sakamiti.com/2183.html
★ LED color temperature is constant, color temperature and color do not decay, soft and not dazzling, very close to natural sunlight, without ultraviolet radiation and flicker.Article SourceSAKAMITI-https://www.sakamiti.com/2183.html
- Excellent shadowless effect
★ The lamp head adopts the most scientific curvature, with built-in eight zones, molded, and multi-point light source design. The light spot adjustment is flexible, making the illumination more uniform. When the surgical lamp is partially blocked, it can also achieve a perfect shadowless effect.Article SourceSAKAMITI-https://www.sakamiti.com/2183.html
★ Use two types of light beads with similar color temperatures to avoid dizziness for the surgeon.Article SourceSAKAMITI-https://www.sakamiti.com/2183.html
- Excellent depth lighting
★ Adopting computer-aided modular design, multiple LED light columns are focused for illumination, producing a depth illumination of over 1200 millimeters of light columns, with a maximum central illumination of over 180000 lux, and providing adjustable color temperatures of 3700K-5000K that are close to natural sunlight, truly reflecting the color of human tissues, fully meeting the needs of various surgical lighting.Article SourceSAKAMITI-https://www.sakamiti.com/2183.html
★ Equipped with endoscopic surgery mode and soft ambient lighting; Press the ambient lighting button, indicating that only the cavity mirror ambient lighting is needed, leaving only one of the 8 LEDs for illumination, and turning off the remaining LED string; Press this button again to return to the original illumination display state. It has played a good auxiliary role in local depth lighting.Article SourceSAKAMITI-https://www.sakamiti.com/2183.html
- Advanced control system
★ Adopting LCD display button type control, it can adjust power switch, illumination, color temperature, etc. to meet the requirements of medical staff for different surgical brightness of patients.Article SourceSAKAMITI-https://www.sakamiti.com/2183.html
★ Digital memory function, automatically remembers the appropriate lighting level, and does not require debugging when turned on again.Article SourceSAKAMITI-https://www.sakamiti.com/2183.html
★ Multiple centralized control methods with the same power and multiple groups, ensuring that single LED damage does not affect surgical lighting requirements.Article SourceSAKAMITI-https://www.sakamiti.com/2183.html
- Universal suspension system
★ Rotating arm, using a 50 * 70 standard rectangular tube for a safer and more aesthetically pleasing appearance; The maintenance port for the rotating arm carbon brush adopts ABS mold for one-time molding, with no external screw fixation, which is more coordinated and beautiful.Article SourceSAKAMITI-https://www.sakamiti.com/2183.html
The balance system adopts high-quality spring arm components, which are lightweight, easy to operate, precise in positioning, and can provide the maximum adjustment range.Article SourceSAKAMITI-https://www.sakamiti.com/2183.html
- Modern laminar flow lamp head
★ Circular ultra-thin design, with the thickest part not exceeding 10CM, can achieve excellent laminar flow effect.Article SourceSAKAMITI-https://www.sakamiti.com/2183.html
The lampshade shell is made of aluminum material, and the central handle of the lamp head is detachable, making it easy to adjust and flexibly position.Article SourceSAKAMITI-https://www.sakamiti.com/2183.html
Article SourceSAKAMITI-https://www.sakamiti.com/2183.html
Technical parameter description of camera systemArticle SourceSAKAMITI-https://www.sakamiti.com/2183.html
Function: Switching frame accumulation day and nightArticle SourceSAKAMITI-https://www.sakamiti.com/2183.html
Anti flicker white balanceArticle SourceSAKAMITI-https://www.sakamiti.com/2183.html
Wide dynamic backlight compensationArticle SourceSAKAMITI-https://www.sakamiti.com/2183.html
Strong light suppression 3DNR
Privacy Masking Mirror Function
Dynamic detection of frozen images
Advanced features:
Electronic anti shake and anti fog function
Product features:
- High quality1080P (1920 * 1080) high-definition image quality
- 1/3” CMOS Sensor,逐行扫描,有效像素约230万
- High sensitivity mode-0.2lux
- Powerful zoom function:10x optical zoom, 12x digital zoom, up to 120x zoom
- Image output signal:LVDS, (optional SDI or AHD)
- Main chip temperature display,ID display, and zoom display
- Communication protocol supporting remote control:SONY-VISCA PELCO-D
camera | |
sensor | 1/3 ° Progressive CMOS (approximately 2.3 million pixels) |
scanning system | 16: 9 line by line scanning |
Synchronous system | Internal synchronization |
Effective Pixels | 1920 (H) X1080 (V) |
Horizontal resolution | 1000TVL |
Minimum illumination | 0.2Lux (daily). 0.005Lux (DSS enabled) |
lens | |
focal length | 4.7-47mm (10x optical zoom, 12x digital zoom) |
Aperture number | F1.6-F3.0 |
Horizontal perspective | 60.9 ° -6.4 ° (Wide Tele) |
Minimum visible distance | 30cm |
Doubling speed | Adjustable (0-7) |
Image output | |
HD-LVDS signal output | 1920X1080P. 50.60.25.30fps 1920X1080P 50.60fps 1280 × 720P 50.60fps |
1TU-R BT.1120) (YcbCr4:2:2 16bits) | |
CVBS signal output | Simulated composite video (1V ± 0.2 Vp-p) NTSC/PAL |
function | |
Camera ID | 0-255 (ID display: off/on) |
User Title/Zoom Display/Temperature Display | Close/Open |
Aperture mode | Automatic/Manual (0-17) |
shutter speed | 1/25 (1/30) second to 1/30000 second. Frame accumulation (off -1/1 Seconds) |
automatic gain | Adjustable (0-20) |
Flicker suppression | Close/Open |
white balance | Automatic/automatic tracking of white balance/manual/remote control automatic |
Day and night switching | Automatic (ICR)/Color/Black and White/External Signal Trigger |
Backlight compensation | Close/Open |
Electronic stabilization | Close/Open |
Fogging function | Off/On (High/Medium/Low) |
Wide dynamic range | Off/On (0-4S adjustable) |
Automatic exposure area | Region display: off/on (region can be set) |
Strong light suppression | Off/On (Level: 0-20, 8 colors) |
Privacy Masking | Off/On, 1-8 masking areas available, 8 masking area colors available |
3D digital noise reduction | Off/Low/Medium/High |
Color level | Adjustable (0-20) |
Sharpness | Adjustable (0-20) |
Screen freeze | Close/Open |
D Effect | Close/Mirror/Flip Vertical/Rotate |
Dynamic detection | Close/Track/Monitor, Sensitivity: 0-20 |
Gamma correction | Low/Default/Medium/High |
language | English/Simplified Chinese/French/German/Spanish/Portuguese/Russian |
Control interface | |
RS-485 | PELCO-D/SONY-VISCA protocol |
8bits data 1stop bit no parity 2400-115200bps | |
General parameters | |
Working humidity | -20 ℃ -60 ℃ |
source | DC 7V-15V |
power dissipation | MAX 5W |
Size (width * height * depth) | 43.6 * 45 5 * 67mt |
weight | Approximately 150g |
Note: Customer optional solution
- RJ45 network version output scheme. {Camera uses network signals to output images}
- Digital SDI version output scheme. {Camera uses SDI coaxial line to output images}
Both options can be equipped with an auxiliary display screen {4.3 inches}, a camera remote control, and a high-definition recorder.
Product configuration list:
Number | name | quantity | Remarks | ||
one |
wood box |
Base assembly | 1 unit | ||
two |
Balance arm |
700 ° | () pieces | ||
500 ° | () pieces | ||||
three | Dust cover (including base and screws) | 1 unit | |||
four | Install screw pack | 1 pack | |||
five | toolkit | 1 pack | |||
six | instructions | 1 copy | |||
seven | Packing list | 1 copy | |||
eight |
paper box |
Lamp head assembly | 700 ° | () set | |
500 ° | () set | ||||
nine | Disinfection handle | 4 | 2 per lamp head | ||
ten
|
security
pretend disc |
Upper plate → Lower plate → | 1 unit | ||
Screw rod suction top plate | 1 unit | ||||
Note: The installation disk is equipped according to customer requirements. |
