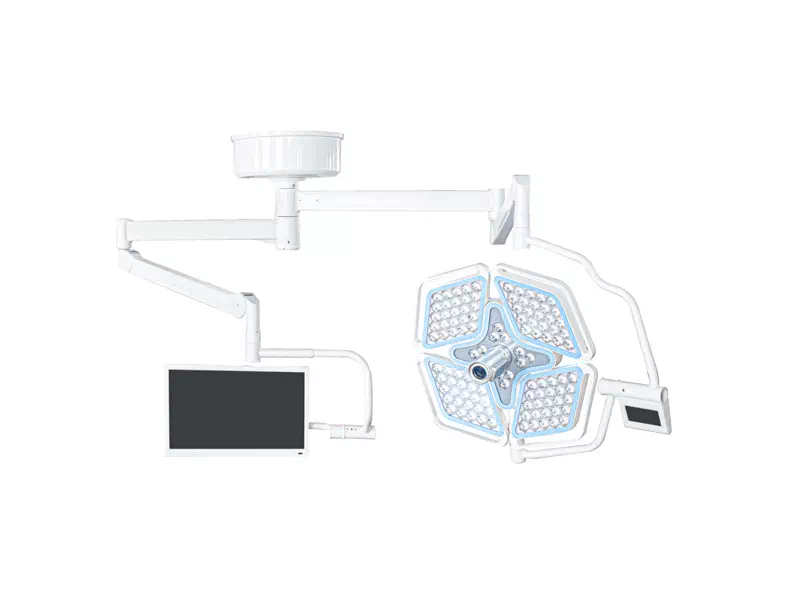

Features of the petal LED 700- (4) integrated surgical shadowless lamp with recording system:
1. Modern laminar flow lamp head
Adopting a new petal shaped ultra-thin design, the thickest part does not exceed 6.5CM, which can achieve excellent laminar flow effect. The lampshade shell is made of a new high-quality ABS+PC alloy material, which is corrosion-resistant, acid and alkali resistant, effectively increasing the product's service life.
2. New Cold Light Source Extends Service Life:
Adopting a new imported LED cold light source, it is energy-saving and environmentally friendly, with an ultra long service life of over 60000 hours. The doctor's head temperature is less than 1 ℃.
3. Perfect cold light effect:
The new imported LED cold light source does not produce infrared and ultraviolet radiation, and the halogen-free shadowless lamp causes temperature rise and tissue damage to the wound, accelerating postoperative wound healing, and has no radiation pollution. LED color temperature is constant, color temperature does not decay, soft and not dazzling, very close to natural sunlight.
4. A finely structured focusing system:
Equipped with electronic focusing technology, easy and convenient to operate, overcoming the focus of LED surgical shadowless lights
We have overcome technical difficulties and achieved electronic focusing function; Detachable handle, capable of high-temperature sterilization treatment (≤ 134 ℃).
5. Excellent depth lighting:
Using computer-aided modular design, multiple LED light columns are focused for illumination, producing a depth of illumination of over 1200mm. The central illumination can reach up to 160000lnx or more, and it provides adjustable color temperatures of 3700K-5500K that are close to natural sunlight, truly reflecting the color of human tissues, fully meeting various surgical lighting needs.
6. Excellent shadowless effect:
The lamp head adopts the most scientific curvature and multi-point light source design, making the illumination of the spot more uniform. When the surgical lamp is partially blocked, it can also achieve a perfect shadowless effect. The rotation radius of the lamp disc is ≥ 182cm, and the lamp head can be pulled down to the vertical ground, making it convenient for lighting at various angles.
7. Advanced control systems:
Using LCD display button type control, it can adjust power switch, illumination, color temperature, etc. to meet the requirements of medical staff for different surgical brightness of patients. Digital memory function, automatic memory of suitable lighting levels, no need for debugging when turned on again, multiple sets of multiple centralized control methods with the same power, ensuring that single LED damage does not affect surgical lighting requirements.
8. Universal suspension system:
The rotating arm is formed by a new type of cold drawing in one go, and the balance system uses domestically produced spring components. The structure is lightweight, easy to operate, and the positioning is precise, providing the maximum adjustment range. It has a fatigue correction device and a positioning feel adjustment device, which is easy to adjust after long-term use.
9. Light mode:
One click cycle to switch between deep cavity mode, shallow surface mode, cavity mirror mode, and normal mode. More convenient lighting requirements for various complex surgeries during surgery.
Colorful light mode: R11 green light source, with obvious environmental light effect, suitable for high color rendering index surgical procedures such as cardiothoracic and neurosurgery. The R9 red light source can easily identify the details of wound tissue and identify subtle vascular surgeries, making it less prone to visual fatigue during long-term surgery and meeting the various surgical needs of medical staff.
10. Optional features:
1. Intelligent compensation; 2. Mutual control function; 3. Infrared control; 4. LCD touch screen.
Introduction to Camera System
The LED surgical light recording system is manufactured in a modular manner with built-in external components. The camera is embedded in the main light and supports a high-definition external display on the upper arm, which can provide high-definition and wide range convenience for doctors to perform surgical recording and teaching operations.
Technical parameters:
112 LED light bulbs
Illumination (Lux) 80000-16000
Color temperature (K) 3700-5500
Spot diameter (mm) 160-350
Color rendering index 90-98 (adjustable)
Lighting depth (mm) ≥ 1200
The head temperature of the surgeon is less than 1 ℃
Power supply voltage AC100-240V 50/60HZ
Input power (VA) 400
Configuration list (single unit):
Serial number, accessory name, brand, quantity, unit, remarks
1 set of domestically produced 700 four petal lamp holders
2 disinfection handles, 4 domestic standard configurations, and 2 spare parts each
3 LED light groups, Germany Osram 1 set
1 set of domestically produced 4 balance arms
5 rotating arms (including fixed base), 1 set domestically produced
1 set of domestically produced 6-switch power supply assembly
1 set of domestically produced 7 protective covers
1 set of domestically produced 8 lighting tools
9 Product Qualification Certificate/Warranty Card 1 set domestically produced
10 User Manual: 1 set domestically produced
11 built-in external camera and recording integrated system, 1 set domestically producedArticle SourceSAKAMITI-https://www.sakamiti.com/2187.html
Technical parameter description of camera systemArticle SourceSAKAMITI-https://www.sakamiti.com/2187.html
Article SourceSAKAMITI-https://www.sakamiti.com/2187.html
Function: Switching frame accumulation day and nightArticle SourceSAKAMITI-https://www.sakamiti.com/2187.html
Anti flicker white balanceArticle SourceSAKAMITI-https://www.sakamiti.com/2187.html
Wide dynamic backlight compensationArticle SourceSAKAMITI-https://www.sakamiti.com/2187.html
Strong light suppression 3DNRArticle SourceSAKAMITI-https://www.sakamiti.com/2187.html
Privacy Masking Mirror FunctionArticle SourceSAKAMITI-https://www.sakamiti.com/2187.html
Dynamic detection of frozen imagesArticle SourceSAKAMITI-https://www.sakamiti.com/2187.html
Advanced features:Article SourceSAKAMITI-https://www.sakamiti.com/2187.html
Electronic anti shake and anti fog functionArticle SourceSAKAMITI-https://www.sakamiti.com/2187.html
Product features:Article SourceSAKAMITI-https://www.sakamiti.com/2187.html
- High quality1080P (1920 * 1080) high-definition image quality
- 1/3” CMOS Sensor,逐行扫描,有效像素约230万
- High sensitivity mode-0.2lux
- Powerful zoom function:10x optical zoom, 12x digital zoom, up to 120x zoom
- Image output signal:LVDS, (optional SDI or AHD)
- Main chip temperature display,ID display, and zoom display
- Communication protocol supporting remote control:SONY-VISCA PELCO-D
Article SourceSAKAMITI-https://www.sakamiti.com/2187.html
camera | |
sensor | 1/3 ° Progressive CMOS (approximately 2.3 million pixels) |
scanning system | 16: 9 line by line scanning |
Synchronous system | Internal synchronization |
Effective Pixels | 1920 (H) X1080 (V) |
Horizontal resolution | 1000TVL |
Minimum illumination | 0.2Lux (daily). 0.005Lux (DSS enabled) |
lens | |
focal length | 4.7-47mm (10x optical zoom, 12x digital zoom) |
Aperture number | F1.6-F3.0 |
Horizontal perspective | 60.9 ° -6.4 ° (Wide Tele) |
Minimum visible distance | 30cm |
Doubling speed | Adjustable (0-7) |
Image output | |
HD-LVDS signal output | 1920X1080P. 50.60.25.30fps 1920X1080P 50.60fps 1280 × 720P 50.60fps |
1TU-R BT.1120) (YcbCr4:2:2 16bits) | |
CVBS signal output | Simulated composite video (1V ± 0.2 Vp-p) NTSC/PAL |
function | |
Camera ID | 0-255 (ID display: off/on) |
User Title/Zoom Display/Temperature Display | Close/Open |
Aperture mode | Automatic/Manual (0-17) |
shutter speed | 1/25 (1/30) second to 1/30000 second. Frame accumulation (off -1/1 Seconds) |
automatic gain | Adjustable (0-20) |
Flicker suppression | Close/Open |
white balance | Automatic/automatic tracking of white balance/manual/remote control automatic |
Day and night switching | Automatic (ICR)/Color/Black and White/External Signal Trigger |
Backlight compensation | Close/Open |
Electronic stabilization | Close/Open |
Fogging function | Off/On (High/Medium/Low) |
Wide dynamic range | Off/On (0-4S adjustable) |
Automatic exposure area | Region display: off/on (region can be set) |
Strong light suppression | Off/On (Level: 0-20, 8 colors) |
Privacy Masking | Off/On, 1-8 masking areas available, 8 masking area colors available |
3D digital noise reduction | Off/Low/Medium/High |
Color level | Adjustable (0-20) |
Sharpness | Adjustable (0-20) |
Screen freeze | Close/Open |
D Effect | Close/Mirror/Flip Vertical/Rotate |
Dynamic detection | Close/Track/Monitor, Sensitivity: 0-20 |
Gamma correction | Low/Default/Medium/High |
language | English/Simplified Chinese/French/German/Spanish/Portuguese/Russian |
Control interface | |
RS-485 | PELCO-D/SONY-VISCA protocol |
8bits data 1stop bit no parity 2400-115200bps | |
General parameters | |
Working humidity | -20 ℃ -60 ℃ |
source | DC 7V-15V |
power dissipation | MAX 5W |
Size (width * height * depth) | 43.6 * 45 5 * 67mt |
weight | Approximately 150g |
Note: Customer optional solutionArticle SourceSAKAMITI-https://www.sakamiti.com/2187.html
- RJ45 network version output scheme. {Camera uses network signals to output images}
Article SourceSAKAMITI-https://www.sakamiti.com/2187.html
- Digital SDI version output scheme. {Camera uses SDI coaxial line to output images}
Article SourceSAKAMITI-https://www.sakamiti.com/2187.html
Both options can be equipped with an auxiliary display screen {4.3 inches}, a camera remote control, and a high-definition recorder.Article SourceSAKAMITI-https://www.sakamiti.com/2187.html
