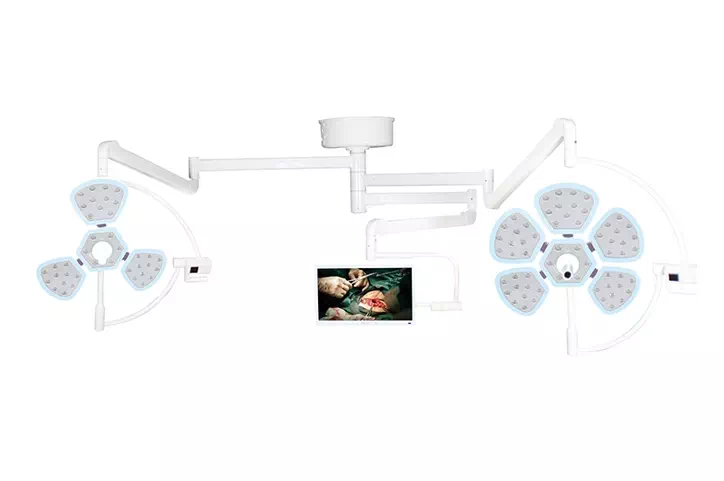

The LED petal 700/500 (5+3) surgical shadowless lamp series adopts a German designer petal shaped ultra-thin design, with the thickest part not exceeding 10cm, which can achieve excellent laminar flow effect. The LED 5+3 surgical shadowless lamp series lampshade shell is made of imported ABS material, and the middle handle of the lamp head is detachable. It is resistant to high temperature and high pressure disinfection at 134 ℃, convenient for adjustment, and flexible positioning. The rotating arm is made of a new alloy material with an octagonal shape. Composed of multiple lamp heads in petal shape, fixed on the balance arm suspension system, with stable positioning and the ability to perform vertical circular movement, it can meet different height and angle requirements during surgery. The entire shadowless lamp is composed of 100 high brightness white LED beads, and 8-11 imported LED beads are connected in series to form a group, which is called a high brightness light-emitting diode; It is composed of multiple groups in parallel, each group is independent of each other. When a group of lamp beads fails or one lamp bead fails, the other lamp beads of the shadowless lamp will still be able to work normally. And it is equipped with a modular LED surgical light recording system made in China, which can make it portable for physicians to operate and can be used for surgical process training in medical colleges.
Main technical parameters of LED series shadowless lamps | ||
Specification and model | LED700(4) | LED500(3) |
Illumination (adjustable) Lux | 60000-180000 (adjustable) | 40000-160000 (adjustable) |
Number of light bulbs | 61 pieces | 37 pieces |
Bulb type | LED | LED |
Average lifespan of light bulbs | ≥ 80000h | ≥ 80000h |
Color temperature (adjustable) | 3700K~5000K | 3700K~5000K |
Display index (adjustable) | 85~98 | 85~98 |
Color rendering index | ≥ 97% | ≥ 97% |
Color restoration index Ra | ≥ 97% | ≥ 97% |
Focus depth | ≥ 1200mm | ≥ 1200mm |
Working radius (mm) | 600-1800 | 600-1800 |
Spot diameter | 160-280mm (adjustable) | 160-280mm (adjustable) |
Brightness adjustment | 1% -100% | 1% -100% |
Warming of the surgeon's head | <1 ℃ | <1 ℃ |
Temperature rise in the surgical field area | <2 ℃ | <2 ℃ |
supply voltage | AC100-240V 50/60HZ | AC100-240V 50/60HZ |
Optimal installation height (mm) | 2600-3000 | 2600-3000 |
Article SourceSAKAMITI-https://www.sakamiti.com/2195.html
Product features: Article SourceSAKAMITI-https://www.sakamiti.com/2195.html
- A true cold light source
★ Adopting a new type of LED cold light source, it is energy-saving, environmentally friendly, and has a super long service life of over 80000 hours. 40 times longer lifespan than halogen lamps. At the same brightness, LED energy consumption is only 1/10 of that of ordinary incandescent lamps and 1/2 of that of halogen lamps.Article SourceSAKAMITI-https://www.sakamiti.com/2195.html
LED does not produce infrared and ultraviolet radiation, halogen-free shadowless lamps cause temperature rise and tissue damage to wounds, and there is no radiation pollution.Article SourceSAKAMITI-https://www.sakamiti.com/2195.html
★ LED color temperature is constant, color temperature and color do not decay, soft and not dazzling, very close to natural sunlight, without ultraviolet radiation and flicker.Article SourceSAKAMITI-https://www.sakamiti.com/2195.html
- Excellent shadowless effect
★ The lamp head adopts the most scientific curvature, with built-in eight zones, molded, and multi-point light source design. The light spot adjustment is flexible, making the illumination more uniform. When the surgical lamp is partially blocked, it can also achieve a perfect shadowless effect.Article SourceSAKAMITI-https://www.sakamiti.com/2195.html
★ Use two types of light beads with similar color temperatures to avoid dizziness for the surgeon.Article SourceSAKAMITI-https://www.sakamiti.com/2195.html
- Excellent depth lighting
★ Adopting computer-aided modular design, multiple LED light columns are focused for illumination, producing a depth illumination of over 1200 millimeters of light columns, with a maximum central illumination of over 180000 lux, and providing adjustable color temperatures of 3700K-5000K that are close to natural sunlight, truly reflecting the color of human tissues, fully meeting the needs of various surgical lighting.Article SourceSAKAMITI-https://www.sakamiti.com/2195.html
★ Equipped with endoscopic surgery mode and soft ambient lighting; Press the ambient lighting button, indicating that only the cavity mirror ambient lighting is needed, leaving only one of the 8 LEDs for illumination, and turning off the remaining LED string; Press this button again to return to the original illumination display state. It has played a good auxiliary role in local depth lighting.Article SourceSAKAMITI-https://www.sakamiti.com/2195.html
- Advanced control system
★ Adopting LCD display button type control, it can adjust power switch, illumination, color temperature, etc. to meet the requirements of medical staff for different surgical brightness of patients.Article SourceSAKAMITI-https://www.sakamiti.com/2195.html
★ Digital memory function, automatically remembers the appropriate lighting level, and does not require debugging when turned on again.Article SourceSAKAMITI-https://www.sakamiti.com/2195.html
★ Multiple centralized control methods with the same power and multiple groups, ensuring that single LED damage does not affect surgical lighting requirements.Article SourceSAKAMITI-https://www.sakamiti.com/2195.html
- Universal suspension system
★ Rotating arm, using a 50 * 70 standard rectangular tube for a safer and more aesthetically pleasing appearance; The maintenance port for the rotating arm carbon brush adopts ABS mold for one-time molding, with no external screw fixation, which is more coordinated and beautiful.Article SourceSAKAMITI-https://www.sakamiti.com/2195.html
The balance system adopts high-quality spring arm components, which are lightweight, easy to operate, precise in positioning, and can provide the maximum adjustment range.Article SourceSAKAMITI-https://www.sakamiti.com/2195.html
- Modern laminar flow lamp head
★ Circular ultra-thin design, with the thickest part not exceeding 10CM, can achieve excellent laminar flow effect.Article SourceSAKAMITI-https://www.sakamiti.com/2195.html
The lampshade shell is made of aluminum material, and the central handle of the lamp head is detachable, making it easy to adjust and flexibly position.Article SourceSAKAMITI-https://www.sakamiti.com/2195.html
Article SourceSAKAMITI-https://www.sakamiti.com/2195.html
Article SourceSAKAMITI-https://www.sakamiti.com/2195.html
Article SourceSAKAMITI-https://www.sakamiti.com/2195.html
Article SourceSAKAMITI-https://www.sakamiti.com/2195.html
Technical parameter description of camera system
Function: Switching frame accumulation day and night
Anti flicker white balance
Wide dynamic backlight compensation
Strong light suppression 3DNR
Privacy Masking Mirror Function
Dynamic detection of frozen images
Advanced features:
Electronic anti shake and anti fog function
Product features:
- High quality1080P (1920 * 1080) high-definition image quality
- 1/3” CMOS Sensor,逐行扫描,有效像素约230万
- High sensitivity mode-0.2lux
- Powerful zoom function:10x optical zoom, 12x digital zoom, up to 120x zoom
- Image output signal:LVDS, (optional SDI or AHD)
- Main chip temperature display,ID display, and zoom display
- Communication protocol supporting remote control:SONY-VISCA PELCO-D
camera | |
sensor | 1/3 ° Progressive CMOS (approximately 2.3 million pixels) |
scanning system | 16: 9 line by line scanning |
Synchronous system | Internal synchronization |
Effective Pixels | 1920 (H) X1080 (V) |
Horizontal resolution | 1000TVL |
Minimum illumination | 0.2Lux (daily). 0.005Lux (DSS enabled) |
lens | |
focal length | 4.7-47mm (10x optical zoom, 12x digital zoom) |
Aperture number | F1.6-F3.0 |
Horizontal perspective | 60.9 ° -6.4 ° (Wide Tele) |
Minimum visible distance | 30cm |
Doubling speed | Adjustable (0-7) |
Image output | |
HD-LVDS signal output | 1920X1080P. 50.60.25.30fps 1920X1080P 50.60fps 1280 × 720P 50.60fps |
1TU-R BT.1120) (YcbCr4:2:2 16bits) | |
CVBS signal output | Simulated composite video (1V ± 0.2 Vp-p) NTSC/PAL |
function | |
Camera ID | 0-255 (ID display: off/on) |
User Title/Zoom Display/Temperature Display | Close/Open |
Aperture mode | Automatic/Manual (0-17) |
shutter speed | 1/25 (1/30) second to 1/30000 second. Frame accumulation (off -1/1 Seconds) |
automatic gain | Adjustable (0-20) |
Flicker suppression | Close/Open |
white balance | Automatic/automatic tracking of white balance/manual/remote control automatic |
Day and night switching | Automatic (ICR)/Color/Black and White/External Signal Trigger |
Backlight compensation | Close/Open |
Electronic stabilization | Close/Open |
Fogging function | Off/On (High/Medium/Low) |
Wide dynamic range | Off/On (0-4S adjustable) |
Automatic exposure area | Region display: off/on (region can be set) |
Strong light suppression | Off/On (Level: 0-20, 8 colors) |
Privacy Masking | Off/On, 1-8 masking areas available, 8 masking area colors available |
3D digital noise reduction | Off/Low/Medium/High |
Color level | Adjustable (0-20) |
Sharpness | Adjustable (0-20) |
Screen freeze | Close/Open |
D Effect | Close/Mirror/Flip Vertical/Rotate |
Dynamic detection | Close/Track/Monitor, Sensitivity: 0-20 |
Gamma correction | Low/Default/Medium/High |
language | English/Simplified Chinese/French/German/Spanish/Portuguese/Russian |
Control interface | |
RS-485 | PELCO-D/SONY-VISCA protocol |
8bits data 1stop bit no parity 2400-115200bps | |
General parameters | |
Working humidity | -20 ℃ -60 ℃ |
source | DC 7V-15V |
power dissipation | MAX 5W |
Size (width * height * depth) | 43.6 * 45 5 * 67mt |
weight | Approximately 150g |
Note: Customer optional solution
- RJ45 network version output scheme. {Camera uses network signals to output images}
- Digital SDI version output scheme. {Camera uses SDI coaxial line to output images}
Both options can be equipped with an auxiliary display screen {4.3 inches}, a camera remote control, and a high-definition recorder.
Product configuration list:
Number | name | quantity | Remarks | ||
one |
wood box |
Base assembly | 1 unit | ||
two |
Balance arm |
(4) | () pieces | ||
(3) | () pieces | ||||
three | Dust cover (including base and screws) | 1 unit | |||
four | Install screw pack | 1 pack | |||
five | toolkit | 1 pack | |||
six | instructions | 1 copy | |||
seven | Packing list | 1 copy | |||
eight |
paper box |
Lamp head assembly | 700 ° | () set | |
500 ° | () set | ||||
nine | Disinfection handle | 4 | 2 per lamp head | ||
ten
|
security
pretend disc |
Upper plate → Lower plate → | 1 unit | ||
Screw rod suction top plate | 1 unit | ||||
Note: The installation disk is equipped according to customer requirements. |
