Petal LED 700- (4) Single head surgical shadowless lamp with courtyard style

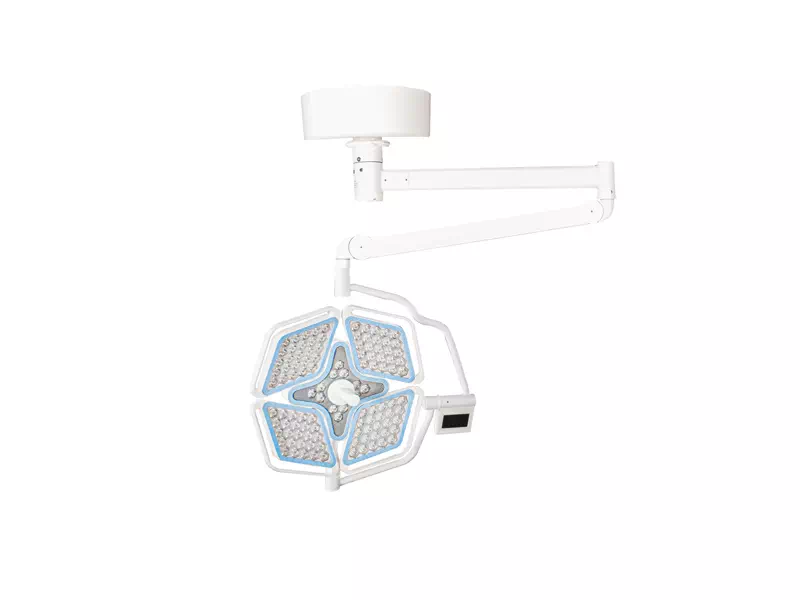

Chinese made petal LED 700- (4) courtyard style single head surgical shadowless lamp product legend

Petal LED 700- (4) Skywell single head surgical shadowless lamp product introduction:
1. Modern laminar flow lamp head
Adopting a new petal shaped ultra-thin design, the thickest part does not exceed 6.5CM, which can achieve excellent laminar flow effect. The lampshade shell is made of a new high-quality ABS+PC alloy material, which is corrosion-resistant, acid and alkali resistant, effectively increasing the product's service life.
2. New Cold Light Source Extends Service Life:
Adopting a new imported LED cold light source, it is energy-saving and environmentally friendly, with an ultra long service life of over 60000 hours. The doctor's head temperature is less than 1 ℃.
3. Perfect cold light effect:
The new imported LED cold light source does not produce infrared and ultraviolet radiation, and the halogen-free shadowless lamp causes temperature rise and tissue damage to the wound, accelerating postoperative wound healing, and has no radiation pollution. LED color temperature is constant, color temperature does not decay, soft and not dazzling, very close to natural sunlight.
4. A finely structured focusing system:
Equipped with electronic focusing technology, easy and convenient to operate, overcoming the focus of LED surgical shadowless lights
We have overcome technical difficulties and achieved electronic focusing function; Detachable handle, capable of high-temperature sterilization treatment (≤ 134 ℃).
5. Excellent depth lighting:
Using computer-aided modular design, multiple LED light columns are focused for illumination, producing a depth of illumination of over 1200mm. The central illumination can reach up to 160000lnx or more, and it provides adjustable color temperatures of 3700K-5500K that are close to natural sunlight, truly reflecting the color of human tissues, fully meeting various surgical lighting needs.
6. Excellent shadowless effect:
The lamp head adopts the most scientific curvature and multi-point light source design, making the illumination of the spot more uniform. When the surgical lamp is partially blocked, it can also achieve a perfect shadowless effect. The rotation radius of the lamp disc is ≥ 182cm, and the lamp head can be pulled down to the vertical ground, making it convenient for lighting at various angles.
7. Advanced control systems:
Using LCD display button type control, it can adjust power switch, illumination, color temperature, etc. to meet the requirements of medical staff for different surgical brightness of patients. Digital memory function, automatic memory of suitable lighting levels, no need for debugging when turned on again, multiple sets of multiple centralized control methods with the same power, ensuring that single LED damage does not affect surgical lighting requirements.
8. Universal suspension system:
The rotating arm is formed by a new type of cold drawing in one go, and the balance system uses domestically produced spring components. The structure is lightweight, easy to operate, and the positioning is precise, providing the maximum adjustment range. It has a fatigue correction device and a positioning feel adjustment device, which is easy to adjust after long-term use.
9. Light mode:
One click cycle to switch between deep cavity mode, shallow surface mode, cavity mirror mode, and normal mode. More convenient lighting requirements for various complex surgeries during surgery.
Colorful light mode: R11 green light source, with obvious environmental light effect, suitable for high color rendering index surgical procedures such as cardiothoracic and neurosurgery. The R9 red light source can easily identify the details of wound tissue and identify subtle vascular surgeries, making it less prone to visual fatigue during long-term surgery and meeting the various surgical needs of medical staff.
10. Optional features:
1. Intelligent compensation; 2. Mutual control function; 3. Infrared control; 4. LCD touch screen.
Introduction to Camera System
The LED surgical light recording system is manufactured in a modular manner with built-in external components. The camera is embedded in the main light and supports a high-definition external display on the upper arm, which can provide high-definition and wide range convenience for doctors to perform surgical recording and teaching operations.
Technical parameters:
112 LED light bulbs
Illumination (Lux) 80000-16000
Color temperature (K) 3700-5500
Spot diameter (mm) 160-350
Color rendering index 90-98 (adjustable)
Lighting depth (mm) ≥ 1200
The head temperature of the surgeon is less than 1 ℃
Power supply voltage AC100-240V 50/60HZ
Input power (VA) 400

Configuration list (single unit):
Serial number, accessory name, brand, quantity, unit, remarks
1 set of domestically produced 700 four petal lamp holders
2 disinfection handles, 4 domestic standard configurations, and 2 spare parts each
3 LED light groups, Germany Osram 1 set
1 set of domestically produced 4 balance arms
5 rotating arms (including fixed base), 1 set domestically produced
1 set of domestically produced 6-switch power supply assembly
1 set of domestically produced 7 protective covers
1 set of domestically produced 8 lighting tools
9 Product Qualification Certificate/Warranty Card 1 set domestically produced
10 User Manual: 1 set domestically produced
11 built-in external camera and recording integrated system, 1 set domestically producedArticle SourceSAKAMITI-https://www.sakamiti.com/2197.html Article SourceSAKAMITI-https://www.sakamiti.com/2197.html
