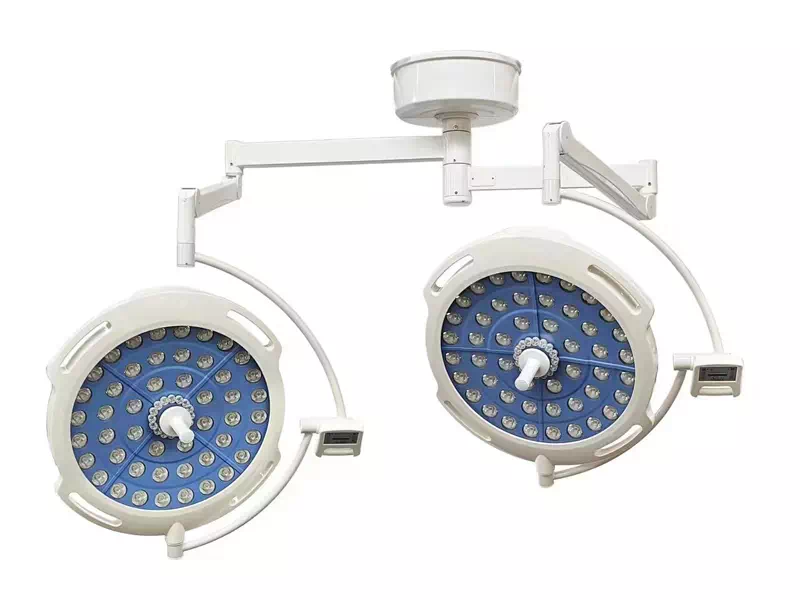

LED700/700 Surgical Shadowless Lamp (Auxiliary Color Lighting)

LED700/700 Surgical Shadowless Lamp (Auxiliary Color Lighting)

Made in China LED-700/700 LED Surgical Light Legend

LED-700/700 LED shadowless lamp technical parameters and product introduction

1、Super long service life:
Each group of LED light source has a separate lens to gather light, each lamp bead has a separate heat dissipation unit, life expectancy of up to 60,000 hours or more, without the need to replace the bulb.LED light source is superior to the traditional halogen lamps, but also to meet the requirements of energy saving and environmental protection.
2, perfect cold light effect:
Adopting new LED cold light source, there is no ultraviolet and infrared in the spectrum, neither heat nor radiation, the temperature rise of the doctor's head and wound area ≤ 1 ℃, almost no temperature rise.
3、Ideal shape design in line with purification requirements:
The fully enclosed streamlined lamp head design conforms to the aerodynamic design principle, the integrated ABS operation puller around the lamp head and the center operation handle are convenient for operation, which completely eliminates the dead space of the flow in the purified air, meets the high standard of laminar flow requirements of the modern operating room, and is conducive to the aseptic requirements of the operating room.
4、Humanized interface design:
Adopt touch-screen control operation mode, in addition to providing light spot, illumination and other operations, another can provide no less than 5 groups of mode adjustment function, convenient for medical staff in different surgical modes of rapid switching. Can change the lighting brightness according to the hospital's demand for different surgical lighting. With surgical lamp double lamp synchronization function.
5、Super deep illumination
The overall design of the LED lamp head makes the light beam gather into a high-brightness uniform light column, which ensures a soft and uniform deep gathering effect, and ensures that the surgery on the high brightness, high depth of the lighting needs.
6, light spot color temperature adjustable function:
LED-700 type spot diameter can be adjusted, the mother lamp and child lamps are to meet the minimum spot diameter d10 for 160mm, the maximum spot diameter d10 for 300mm
The color temperature of the surgical shadowless lamp is adjustable from 3000K to 6700K in ten grades, which makes the diagnosis more accurate and does not cause eye fatigue to the medical staff due to long working hours.
7、Good suspension system:
The spring arm of the surgical light adopts the domestic spring arm (optional imported German ondal), the adjustment is lightweight and does not drift lightweight high-quality balance arm suspension system, six sets of universal joint linkage, 360-degree omni-directional design, to meet the various heights, angles and positions in the operation, easy to move, accurate positioning.
8、Mechanical focusing function:
With manual focusing technology through the sterilization handle can realize the shadowless lamp spot size and spotlight effect, applicable to a variety of surgical lighting needs. Removable handle, can do (≤ 134 ℃) high temperature sterilization.
9, bright and uniform lighting:
LED light source emits a beam of light through a specially designed high-performance lens in the surgical area to focus convergence to meet the surgical lighting needs of the light field; maximum illumination up to 160.000LUX. digital way to regulate the brightness of the LEDs, the illumination of each head can be adjusted separately.
10, the failure rate is extremely low:
Each module contains an independent electronic control system, the light head has a very low failure rate, the failure of a single LED will not affect the function of the light head.
11, configuration color auxiliary light source lighting:
Configuration of R9/R11/R13 multiple auxiliary color light source complementary storage lighting, so that the surgical color reproduction is more clear.Article SourceSAKAMITI-https://www.sakamiti.com/2200.html

Technical parameters:
Model LED-700/700
LED bulb number 64/64
Illumination (Lux) 40000-160000/40000-160000
Color temperature (K) 3000-6700K adjustable/3000-6700K adjustable
Spot diameter (mm) 160-300
Dimming system Ten dimming system
Color rendering index ≥96
Temperature rise of operator's head (℃) ≤1
Temperature rise of operation field area (℃) ≤2
Color rendering index (CRI) ≥96
Color Rendering Index (CRI) ≥97
Illumination depth (mm) ≥600
Power supply voltage 220V/50Hz
Maximum irradiance ≤500 W/m2/≦350W/m2
Input power (VA) 400
Minimum/optimum installation height 2.5m/3mArticle SourceSAKAMITI-https://www.sakamiti.com/2200.html

 Article SourceSAKAMITI-https://www.sakamiti.com/2200.html

LED-700/700 LED Surgical Shadowless Lamp
Configuration list (single unit)
No. Accessory name Brand Quantity Unit Remarks
1 700 lamp head China 1 set
2 700 lamp head China 1 set
3 Sterilization handles China 4 2 each for standard and spare parts
4 LED light set CORE USA 2 sets 700 lamp head 64 LED beads
5 Balance arm China 2 sets Optional imported arm
6 Swivel arm (with fixed base) Domestic 1 set Double arm
7 Switching power supply assembly China 2 sets
8 Shroud 1 set from China
9 Lamp kit 1 set from China
10 Certificate of conformity/warranty card 1 set of China production
11 Instruction manual (1 set)Article SourceSAKAMITI-https://www.sakamiti.com/2200.html

Made in China LED-700/700 LED Surgical Light Product DescriptionArticle SourceSAKAMITI-https://www.sakamiti.com/2200.html

 Article SourceSAKAMITI-https://www.sakamiti.com/2200.html Article SourceSAKAMITI-https://www.sakamiti.com/2200.html
