Made in China LED-700/500 LED surgical shadowless lamp technical parameters and product introduction
1、Super long service life:
Adopting new LED cold light source, the service life can reach more than 60,000 hours, no need to replace the bulb.LED light source is better than traditional halogen lamp, and can meet the requirements of energy saving and environmental protection.
2, perfect cold light effect:
With the new LED cold light source, there are no ultraviolet and infrared rays in the spectrum, neither heat nor radiation, the temperature rise of the doctor's head and wound area ≤ 1 ℃, almost no temperature rise.
3、Ideal shape design in line with purification requirements:
The fully enclosed streamlined lamp head design conforms to the aerodynamic design principle, completely eliminates the dead space of flow in the purified air, meets the high standard of laminar flow requirements of the modern operating room, and is conducive to the aseptic requirements of the operating room.
4、One-key switching light mode:
Shadowless lamp illumination and color temperature can be adjusted through the controller, and one-key switching of normal, deep cavity, shallow surface, and luminal mirror modes facilitates the quick operation of different surgical lighting requirements by medical personnel.
5, RGB color compensation function:
R: red function, saturated red corresponds to R9 in the color rendering index, red light helps to better distinguish vascular tissue, the use of 610NM red light can promote wound healing, skin infections have a therapeutic effect.
G: Green function, saturated green corresponds to R11 in the color rendering index, compensating for the R11 value so that its value reaches the full spectrum standard.
B: blue function, saturated blue corresponds to R12 in the color rendering index, blue light with a wavelength of 470NM has the effect of inhibiting inflammation, compensating for the value of R12, so that its value reaches the full-spectrum standard.
Red, green, blue is also known as the three primary colors of light, so that in a long period of time in the process of surgery is not easy to produce visual fatigue, to meet the needs of health care workers of a variety of surgical needs.
6、Super deep illumination, perfect shadowless effect:
The overall design of the LED lamp head makes the light beam gather into a high brightness uniform light column, thus ensuring a soft and uniform deep gathering effect, and ensuring that the surgery on the high brightness, high depth of the lighting needs.
7, color temperature adjustable function:
The color temperature of LK/LED-700/500 surgical shadowless lamp is adjustable from 3000K to 5700K, which makes the diagnosis more accurate and does not cause eye fatigue to the medical staff due to long working hours.
8、Good suspension system:
Lightweight high-quality balance arm suspension system (optional imported arm), six sets of universal joint linkage, 360-degree omni-directional design, can meet the needs of various heights, angles and body positions in surgery, easy to move and accurate positioning.
9、Sophisticated structure focusing system:
With manual focusing technology, simple and lightweight operation, it has overcome the technical difficulties in focusing LED surgical shadowless lamps and realized stepless focusing function; disassembled handle, it can do (≤134℃) high temperature sterilization treatment, and it has a unique one-key luminal mode.
10、Bright and uniform illumination:
LED light source sends out the light beam through the special design of high-performance lens in the surgical area focusing convergence to meet the surgical illumination required light field; maximum illumination up to 160.000LUX. digital way stepless regulation of the brightness of the LED, the illumination of each head can be adjusted separately.
11, technical parameters:
Model LED-700/500
Number of LED bulbs 64/40
Illumination (Lux) 40000-160000/40000-160000
Color temperature (K) 3000-5700K adjustable/3000-5700K adjustable
Spot diameter (mm) 160-280
Color rendering index ≥96
Temperature rise of the operator's head (℃) ≤1
Temperature rise of operation field area (℃) ≤2
Color rendering index (CRI) ≥96
Color reproduction index (CRI) ≥97
Illumination depth (mm) ≥600
Power supply voltage 220V/50Hz
Maximum irradiance ≤500 W/m2/≦350W/m2
Input power (VA) 400
Minimum/optimum installation height 2.5m/3m

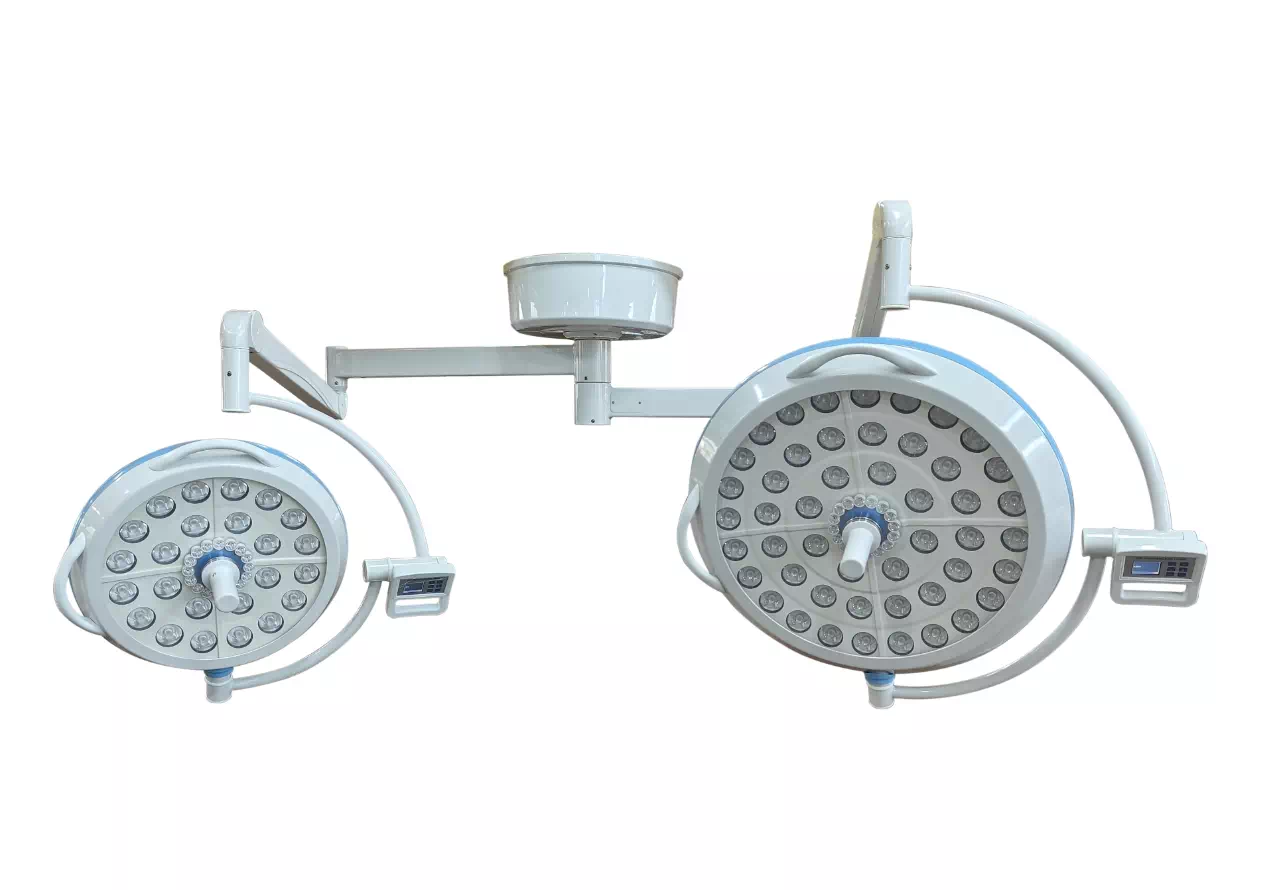

LED-700/500 LED Surgical Shadowless Lamps
Configuration list (single unit)
No. Accessory name Brand Quantity Unit Remarks
1 700 lamp head China 1 set
2 500 lamp head 1 set from China
3 Sterilization handles China 4 2 each for standard and spare parts
4 LED lamp set OSRAM 1 set 700 lamp head with 64 LED beads
5 LED light kit OSRAM 1 set 500 head 40 LED beads
6 Balance arm Domestic 2 sets Imported arm is optional
7 Swivel arm (with fixed base) China 1 set Double arm
8 Switching power supply assembly China 2 sets
9 Shroud 1 set from China
10 Lamp kit 1 set of China
11 Certificate of conformity/warranty card 1 set of national production
12 Instruction manual 1 set (China)
List of optional configurations
No. Accessory name Brand Quantity Unit Remarks
1 Balance arm Imported 1 set
2 LED touch LCD control panel Domestic 1 set
